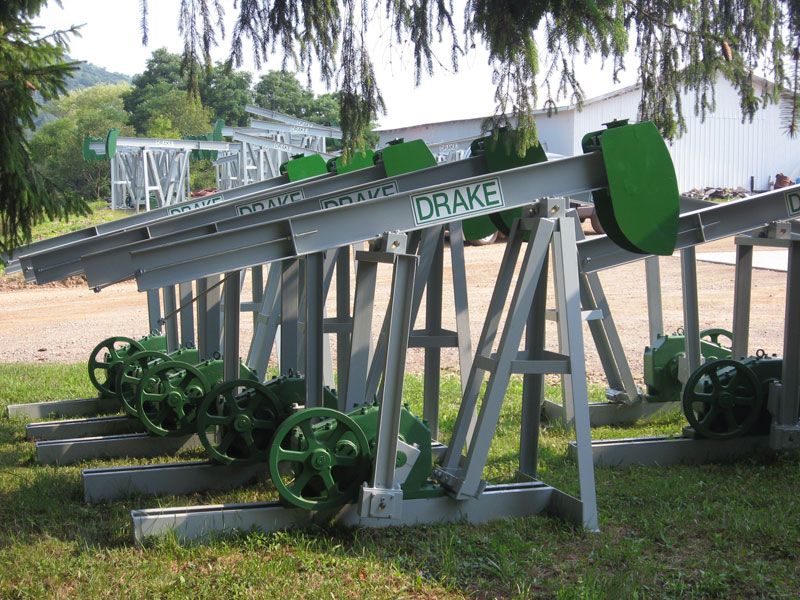

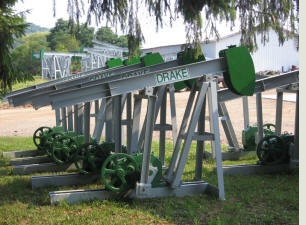

Drake 10 Series
10,000 in. lb. Pump Jack
The Drake 10 pump jack is the smallest of the Drake pump jack product line. Even though it is the smallest, the Saddle Bearing Assembly, the Pitman Bearing Assembly and the Wrist Pin Assembly are the same as used on the
Drake 16. With the use of these components the Drake 10 is a very robust pump jack. Utilizing hardened steel gears, the gearbox is designed and built to withstand forces twice of the rating of the pump jack, up to 20,000 in. lbs.
The walking beam has been extended to allow for a 3 to 1 ratio which reduces the number of weights necessary for balancing.
The Drake 10 pump jack is also available in a wide base option.
