Drake 25 Series

25,000 in. lb. Pump Jack

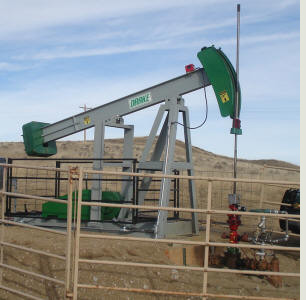

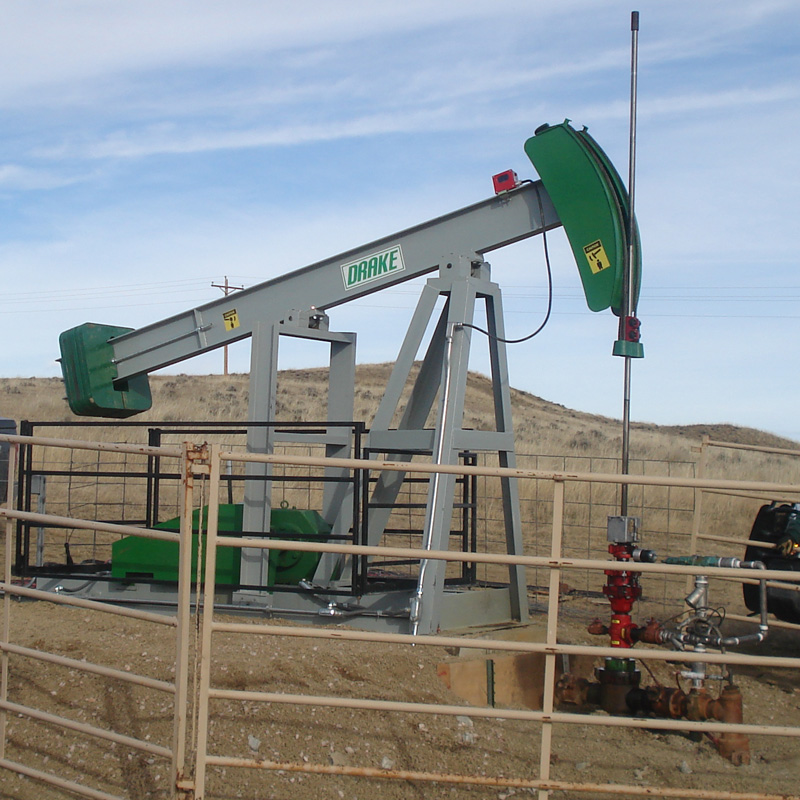

The Drake 25 pump jack has seen service on wells reaching over 3,000 feet deep. The gearbox has been designed to withstand forces reaching 50,000 in. lbs. The pitman bearing assembly is the same as the Saddle Bearing Assembly on the Drake 16. The walking beam was designed with a 3 to 1 ratio to reduce the amount of weights needed for balancing.

The Drake 25 pump jack is available in a wide base option. An optional belt guard is also available that only needs one wing nut to be removed for vee belt replacement.

Download Brochure
