Drake 16 Series

16,000 in. lb. Pump Jack

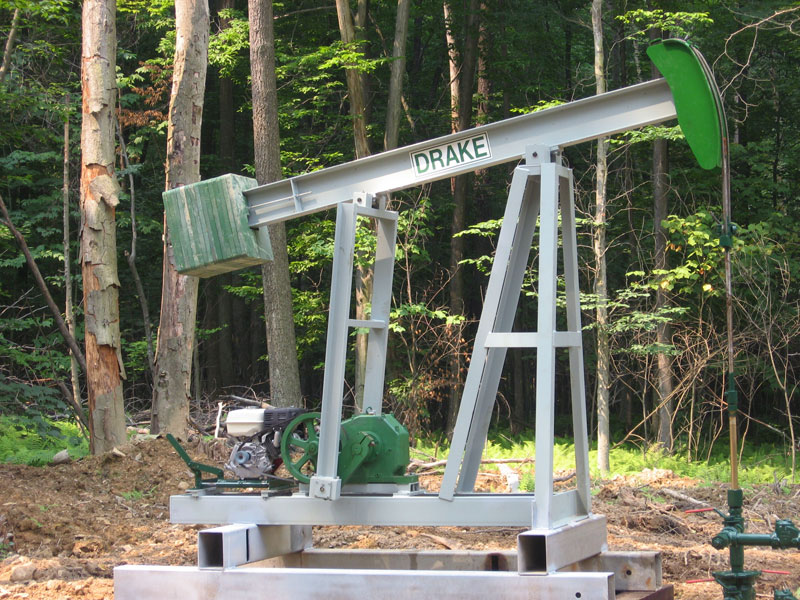

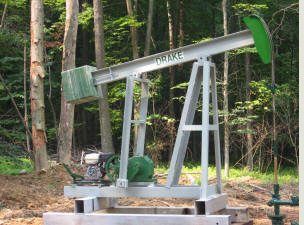

Drake 16The Drake 16 pump jack was the first size in the Drake Pump jack product line. It has went through many improvements since it was first introduced. These improvements were made from the response of the end users in the Oil Fields. Who knows better about these units than the well tenders whose job it is to keep these units running.  Utilizing computer generated drawing and analysis software, the Drake 16 unit is designed to give years of trouble free production. These units have replaced older 25,000 in. lb. units resulting in lower operating costs.

The walking beam has been extended to allow for a 3 to 1 ratio which reduces the number of weights necessary for balancing.

The Drake 16 pump jack is available in a wide base option. An optional belt guard is also available that only needs one wing nut to be removed for vee belt replacement.
